How to Measure Roller Blinds
Get the right measurement for every window
Getting Started
Measure, customise, and install with confidence – we’re here to help you every step of the way.
Getting your measurements right is the first step toward achieving a professional, custom fit for your roller blinds. Whether you’re choosing manual chain control or going motorised, measuring inside the window frame or outside it — we’ve made it simple.
Before you start, have you?
Let’s make sure you’re all set:
Chosen your mounting style – Inside Mount or Outside Mount?
Decided on chain control or motorised operation?
Ordered your free fabric samples?
Downloaded our Check Measure Worksheet?
Read Mike’s measuring tips below?
You'll Need
A metal tape measure or laser meter
A pen and paper (or our worksheet)
1–2 people and about 5–10 minutes
Step-by-Step: Measuring for Roller Blinds
1
Choose Your Mounting Style
Inside Mount (Recess Fit):
The blind fits neatly within the window frame for a clean, modern finish.
Great for minimal interiors
Helps reduce light gaps

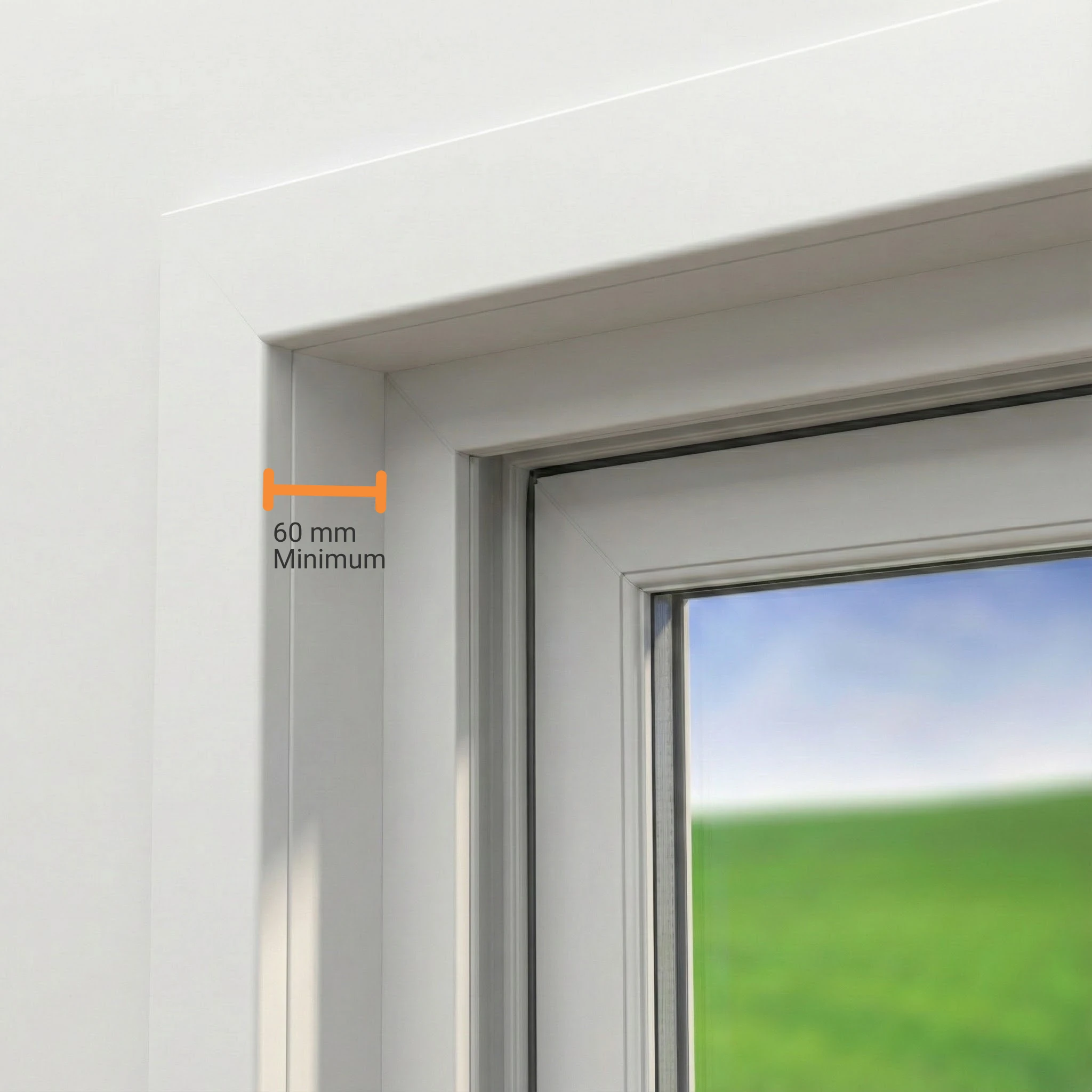

Minimum 60mm depth required for a flush fit
Expect small gaps at the sides – choose outside mount for improved blockout

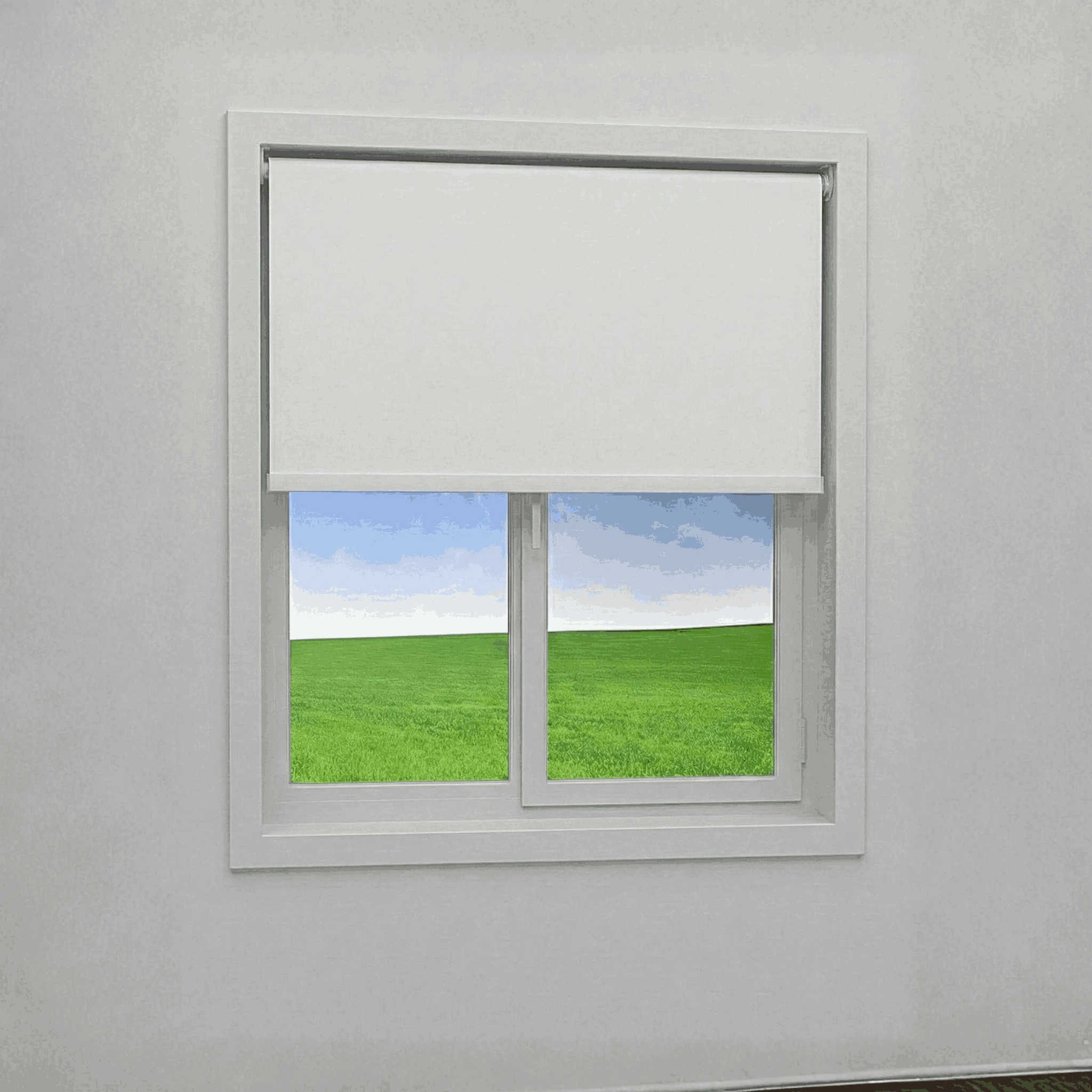

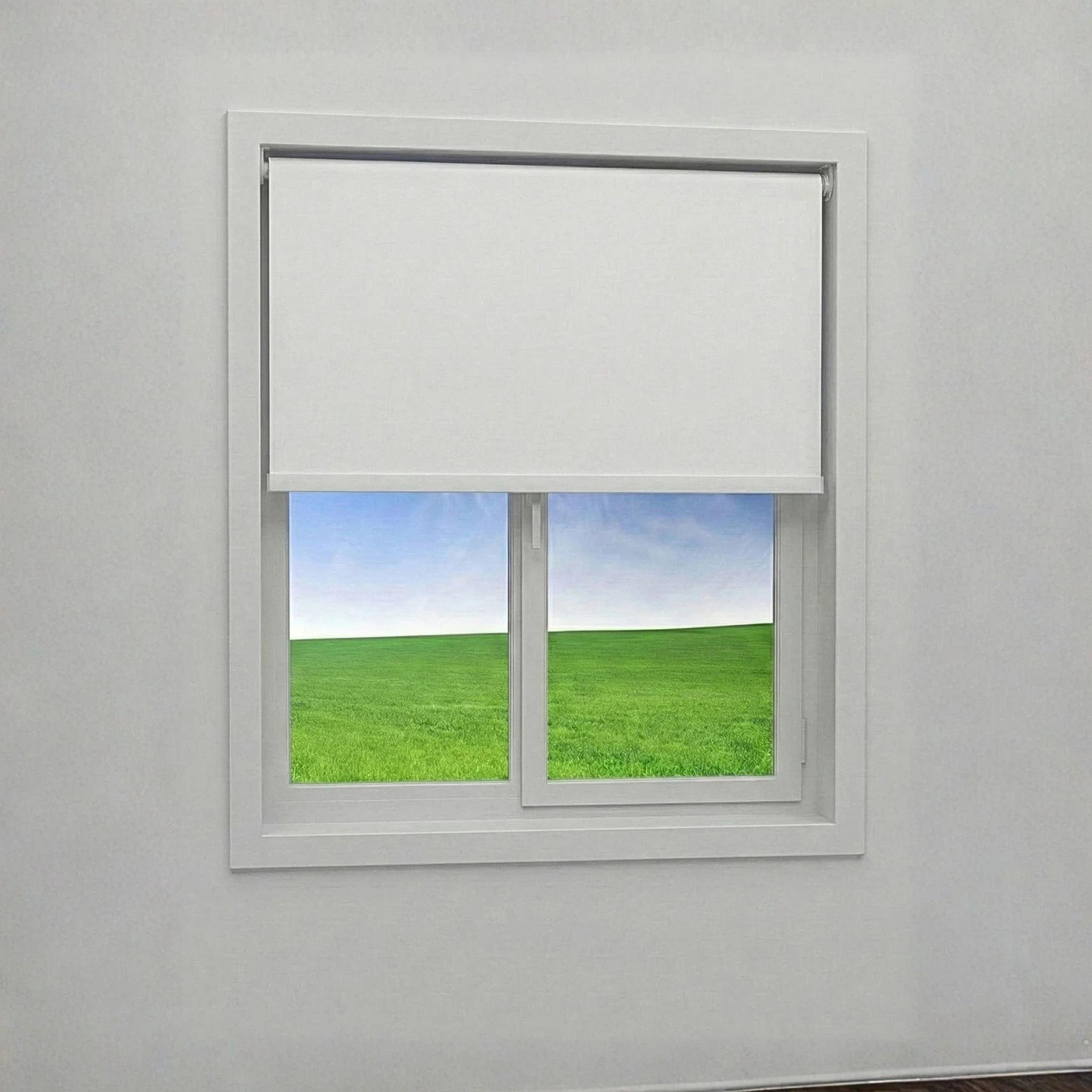

Inside Mount Roller Blind Fabric Front Rolled
2
Measure the Width
Inside Mount:
Measure inside the window frame at the top – bracket to bracket.
Width in mm for Inside Mount Roller Blinds
Important:
The width you enter is always bracket-to-bracket.
The fabric width will be 15mm less per side (30mm total).
If you are adding a Pelmet 95 to your roller blind, measure edge to edge of the pelmet. Fabric will be 18mm less per side (36mm total).
3

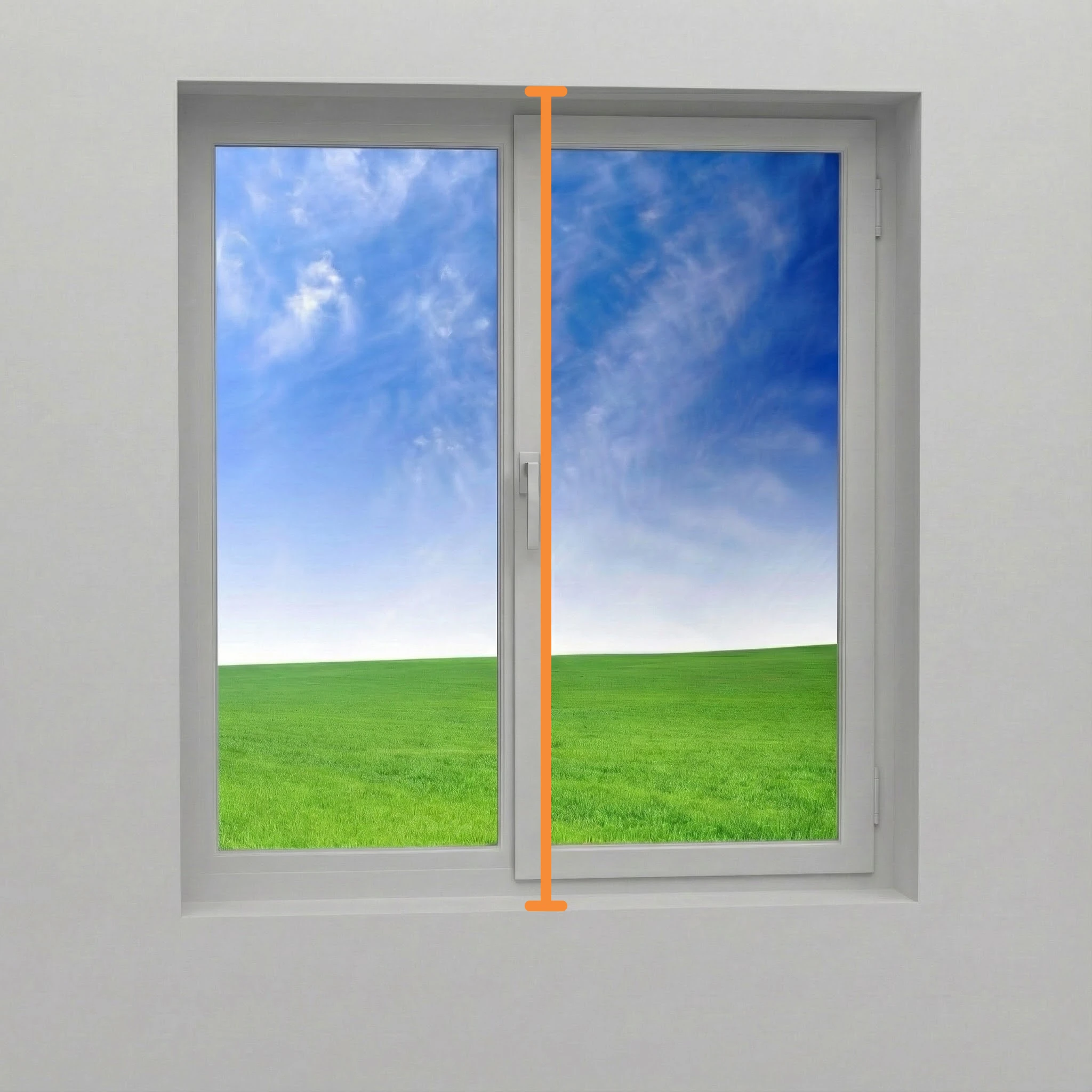

Measure the Drop
Inside Mount:
Measure from the top of the recess to the bottom.
Drop in mm for Inside Mount Roller Blinds
Outside Mount (Face Fit):
The blind is installed on the outside of the frame or wall, covering the entire opening.
Best for blockout, privacy, and light control
Ideal for shallow recesses or when clearing obstructions
Can make windows look taller and wider

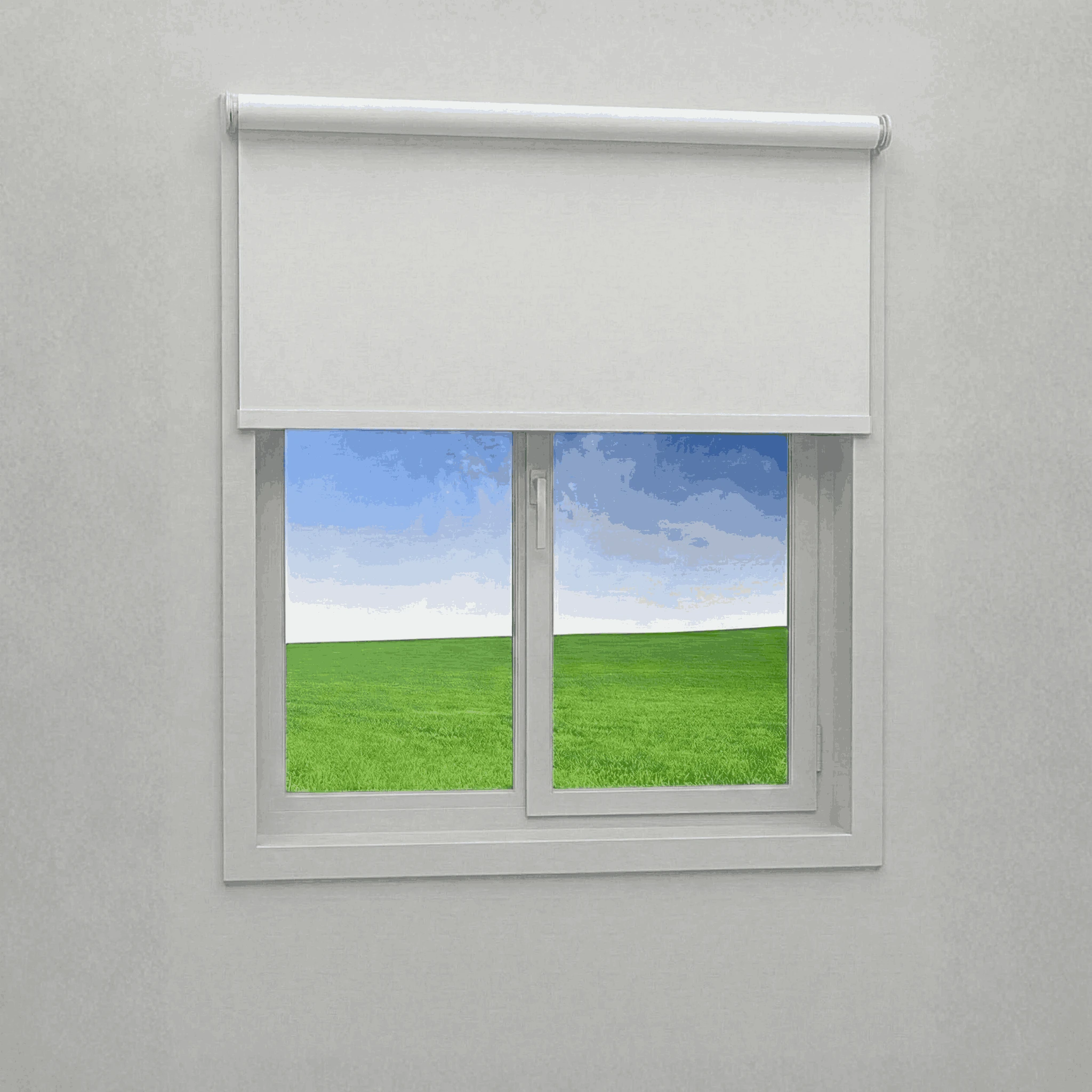

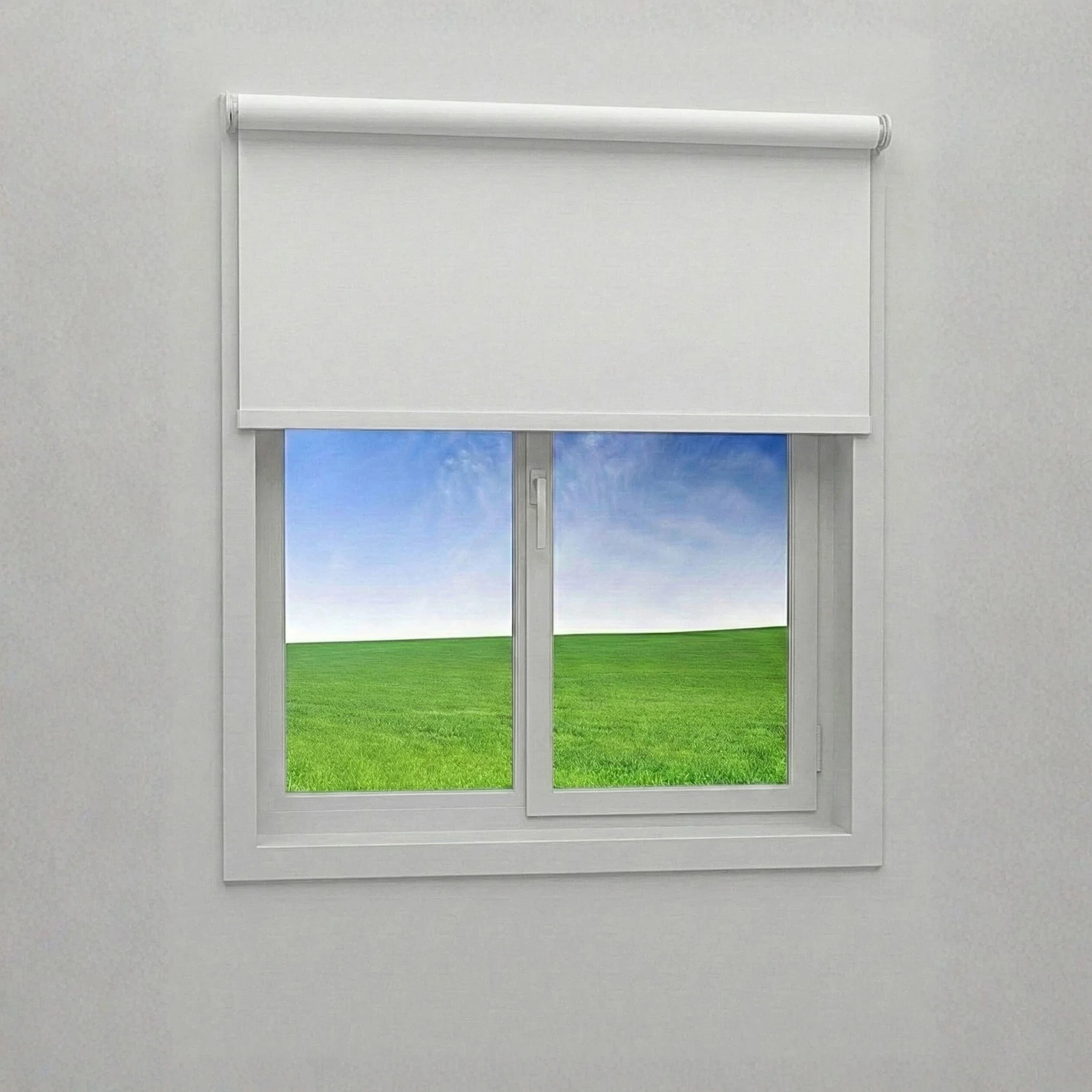

Outside Mount Roller Blind
Fabric Back Rolled
2

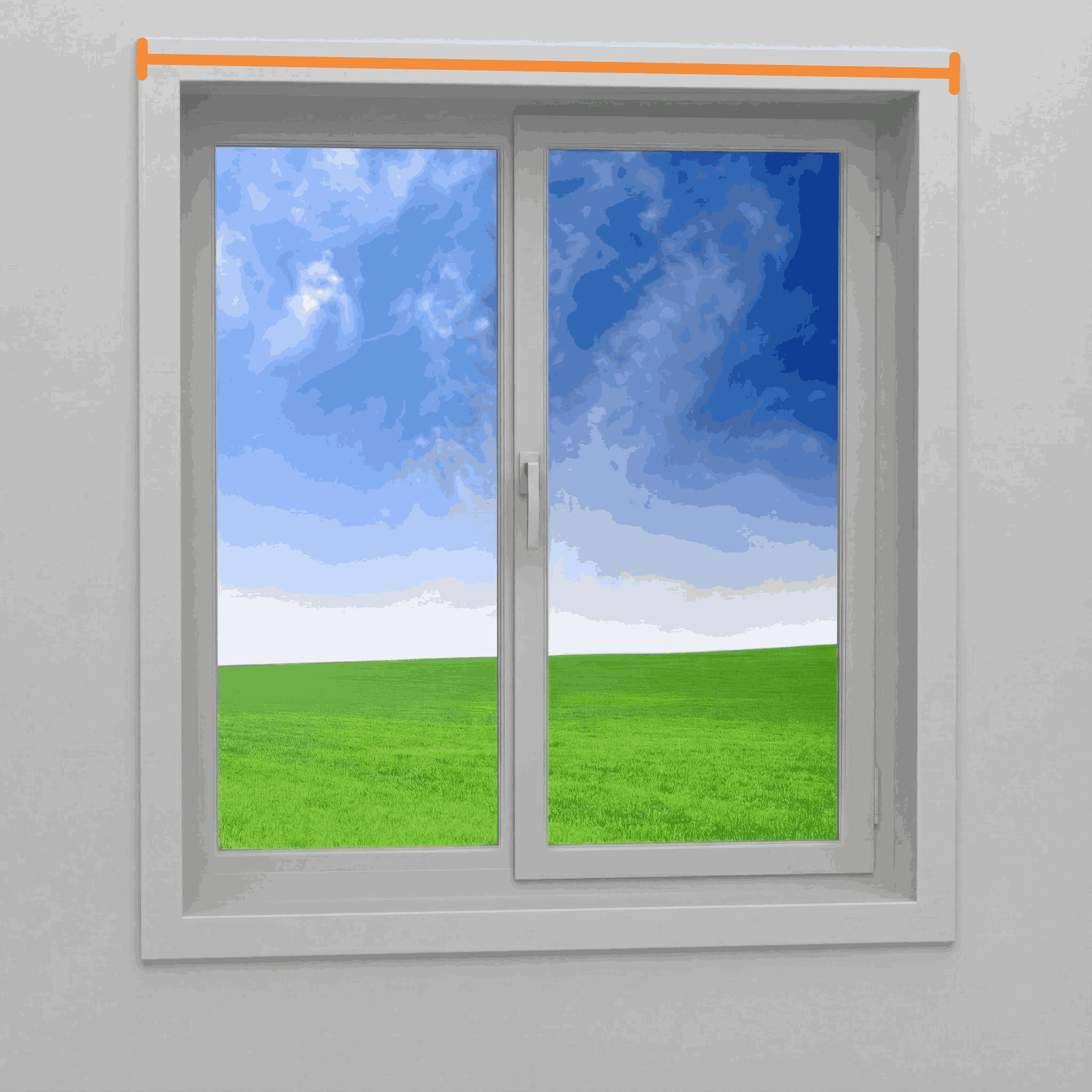

Measure the Width
Outside Mount:
Measure from the outer edge of one architrave to the outer edge of the other architrave.
Width in mm for Outside Mount
Roller Blinds with Architrave

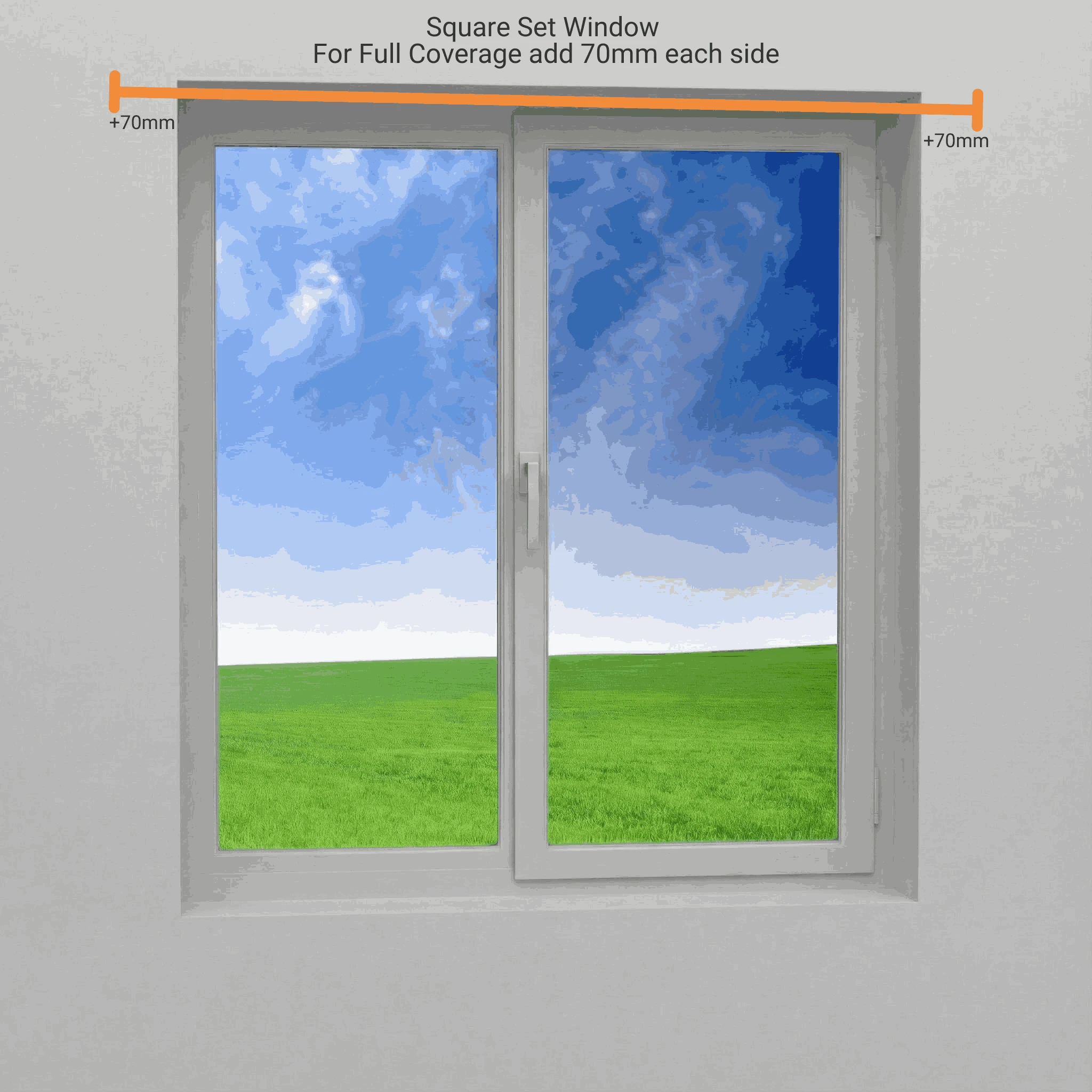

For square set windows, add 70mm each side (140mm total) for full coverage.
Width in mm for Outside Mount
Roller Blinds Square Set Window
Important:
The width you enter is always bracket-to-bracket.
The fabric width will be 15mm less per side (30mm total).
If you are adding a Pelmet 95 to your roller blind, measure edge to edge of the pelmet. Fabric will be 18mm less per side (36mm total).
3

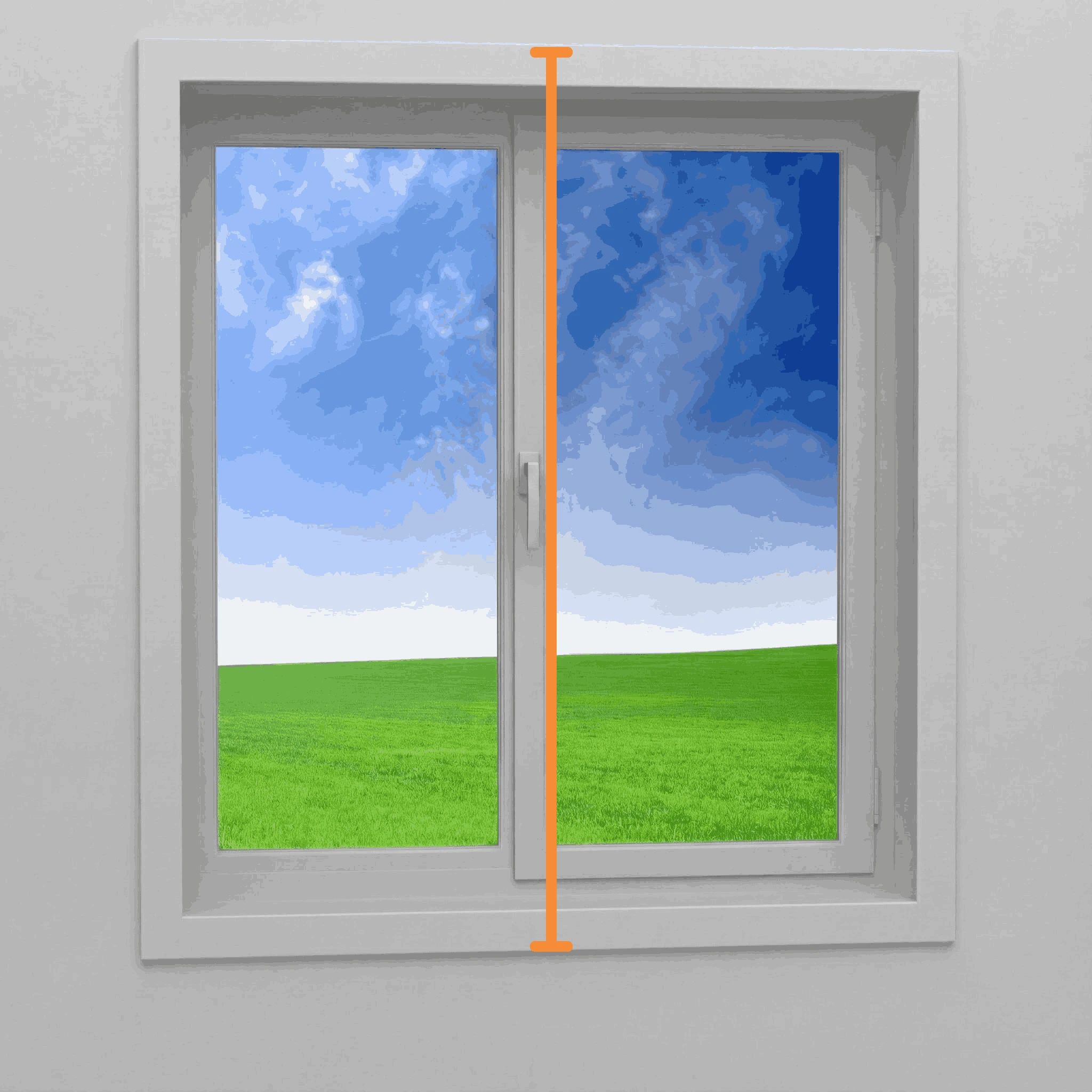

Measure the Drop
Outside Mount:
Measure from the top of the architrave or mounting point to where you’d like the blind to finish.

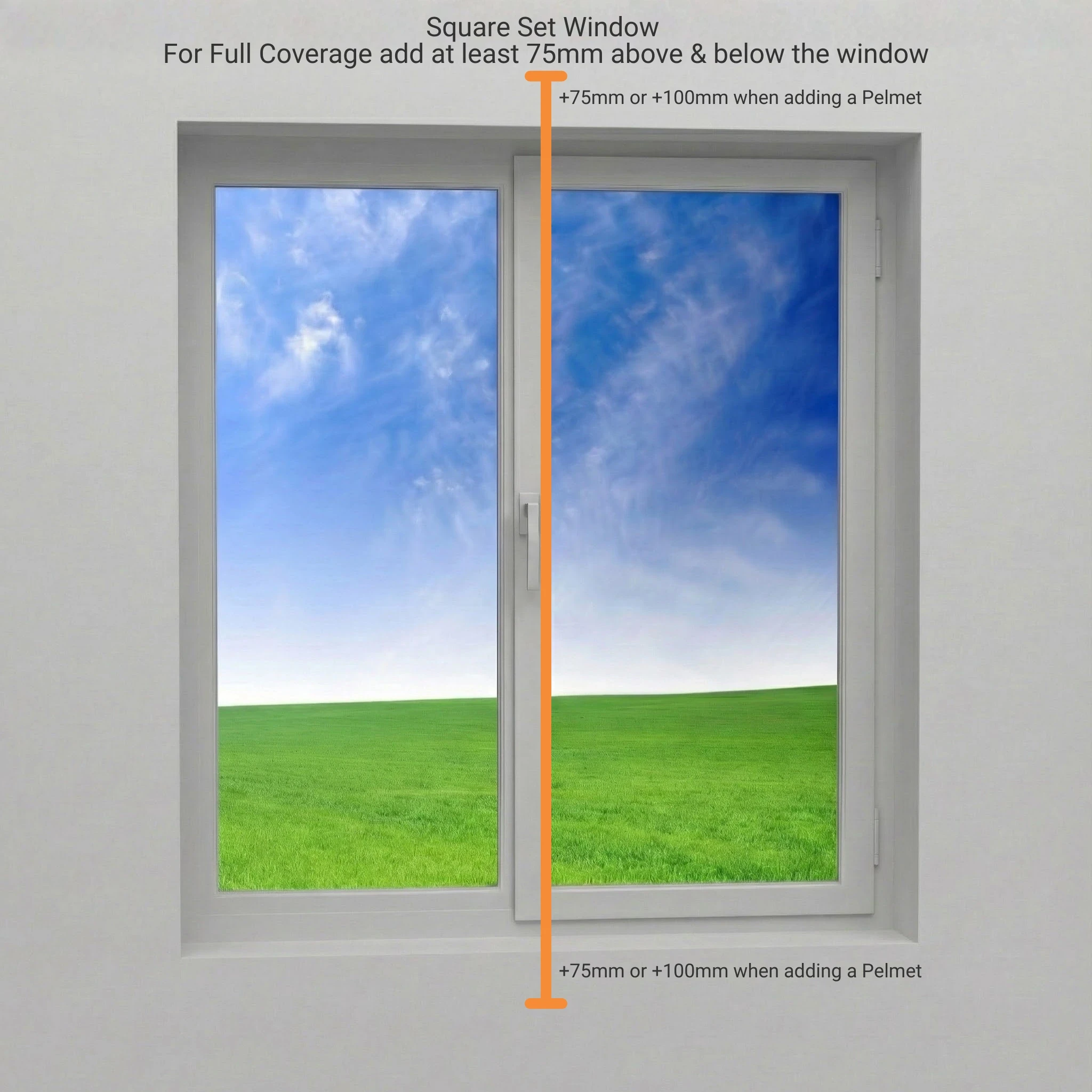

Measuring the Drop – Outside Mount (Square Set or Above Architrave)
Installing your blinds above a square set reveal or on the wall above the architrave? Here’s how to measure your drop with confidence:
Start your measurement from the top of where you would like to install the blind – this should be at least 75mm above the top of the reveal for standard roller blinds, or 100mm above if you’re using Pelmet 95.
Then measure down to at least 75mm below the bottom of the reveal, or all the way to the floor — whichever suits your space.
This will be your overall drop measurement to enter when placing your order.
Drop in mm for Outside Mount Roller Blinds
Drop in mm for Outside Mount
Roller Blinds on a Square Set Window (No Architrave)
4

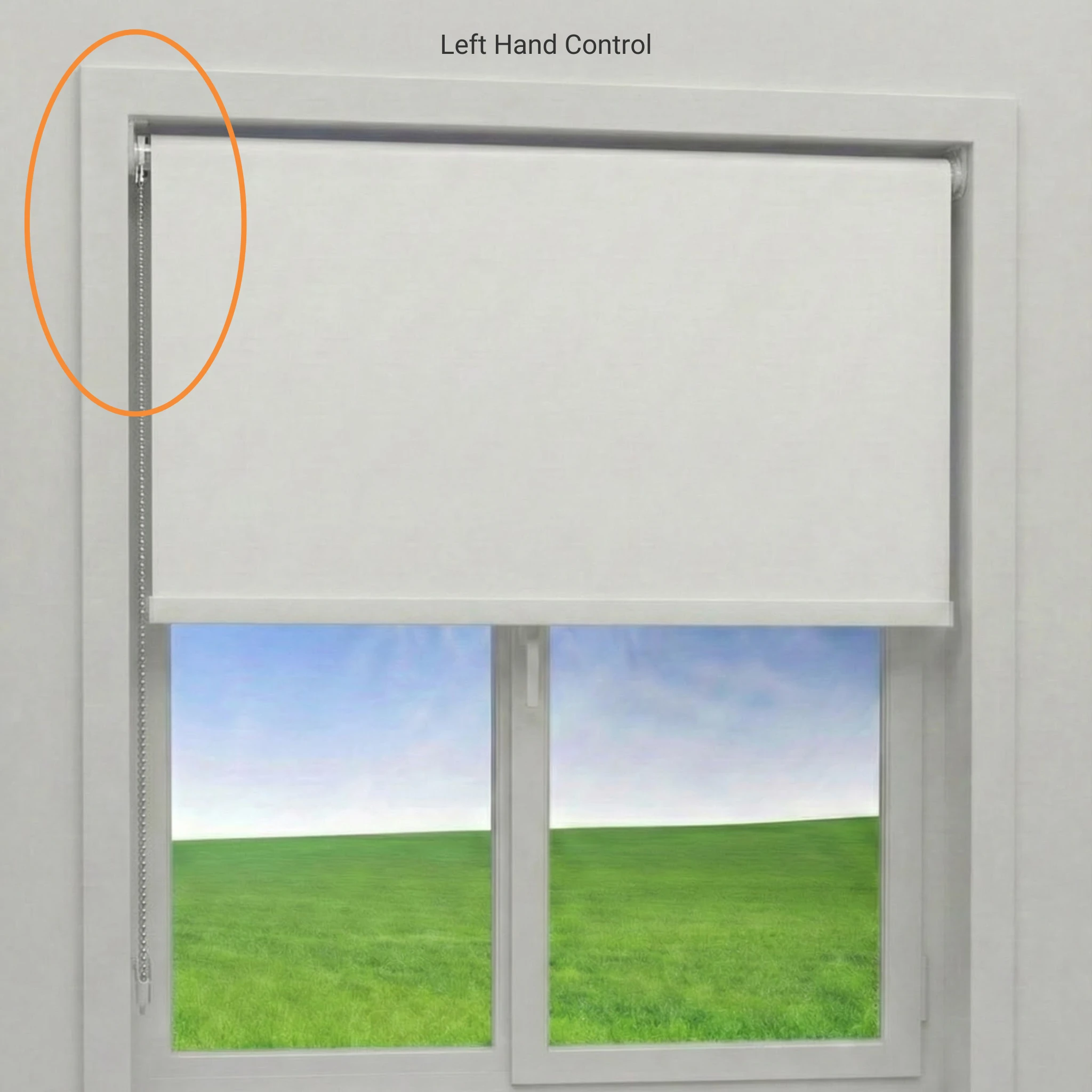

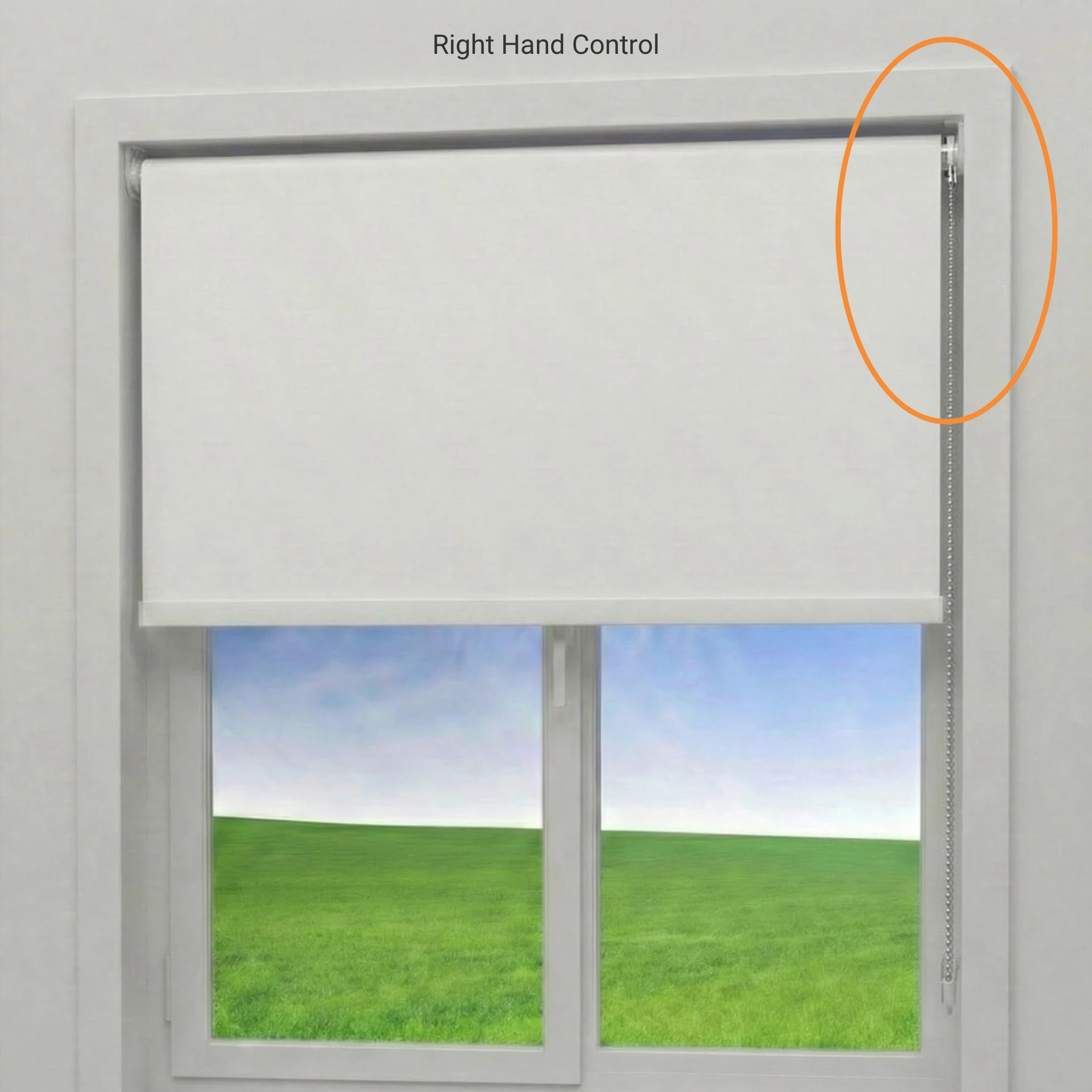

Choose Your Control Side
As you face the window, decide whether you want your chain or motor on the left or right.
Manual Chain Control:
Reliable, easy to use
Choose white, black, metal, or stainless steel (recommended for coastal or wet areas)
We’ll provide the ideal chain length based on your drop (see table below)
If your blind is wider than 1800mm, a spring assist is added to your chain drive for easier lifting and smoother operation
Motorised Control:
Cordless, child-safe, and smart home ready
Select your motor based on your blind size and features
Don’t forget accessories like remotes or chargers
Need help choosing a motor? Our expert team has your back.
5

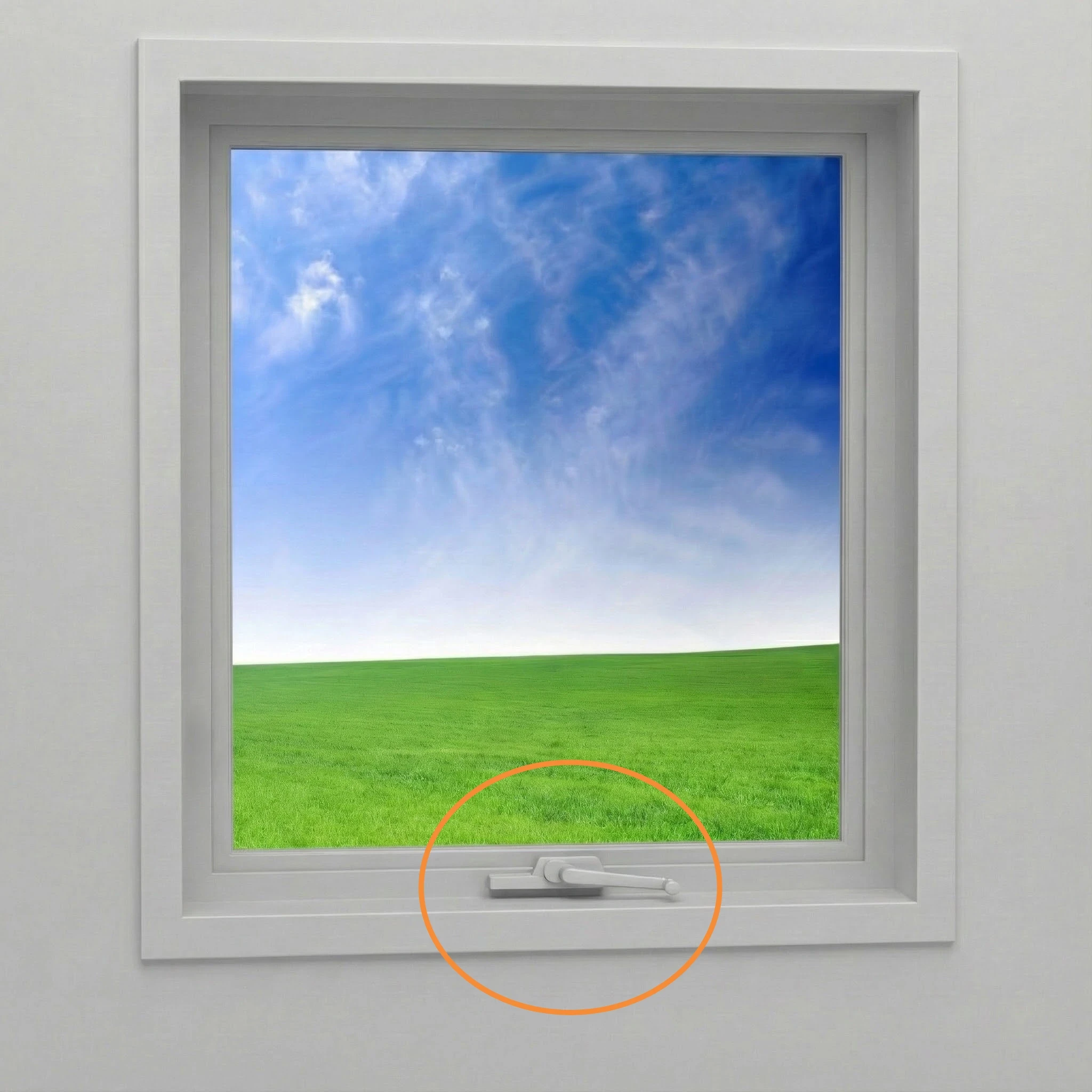

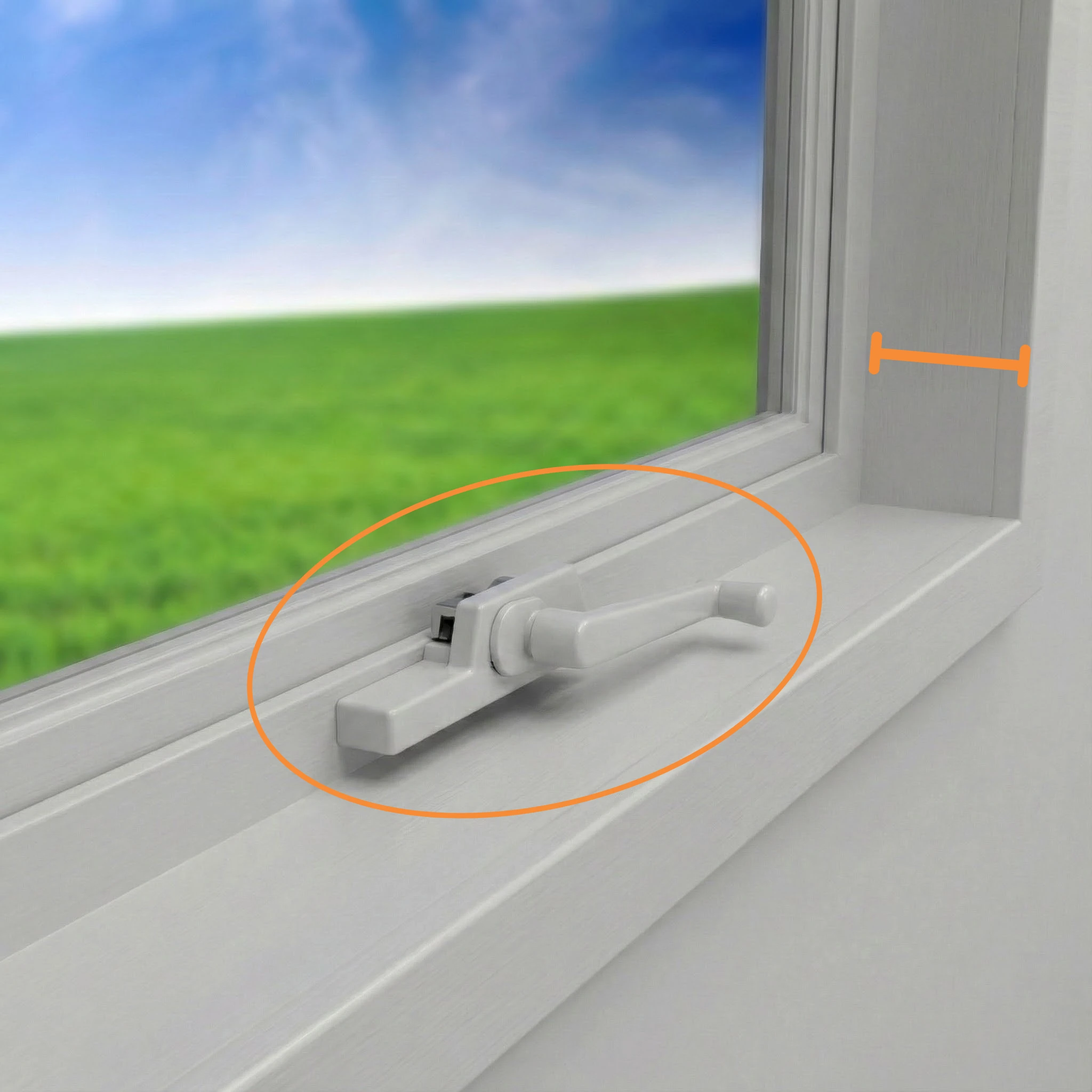

Check for Obstructions
Check for handles, winders, or anything that could get in the way.
6
Pick Your Roll Direction

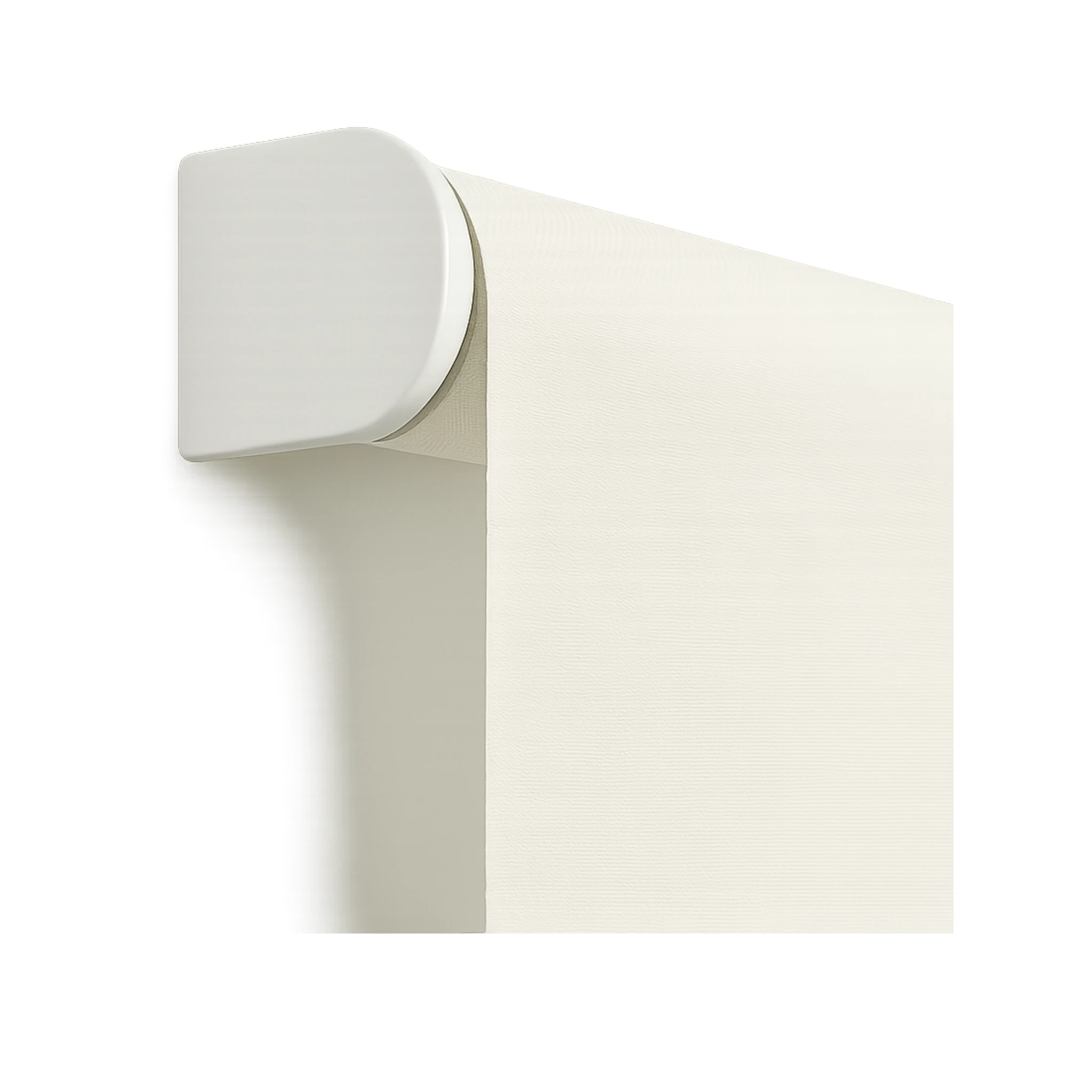

Front Rolled
Inside Mount: We recommend front roll for better clearance and a softer look
Front rolled
Inside Mount Roller Blind Fabric Front Rolled

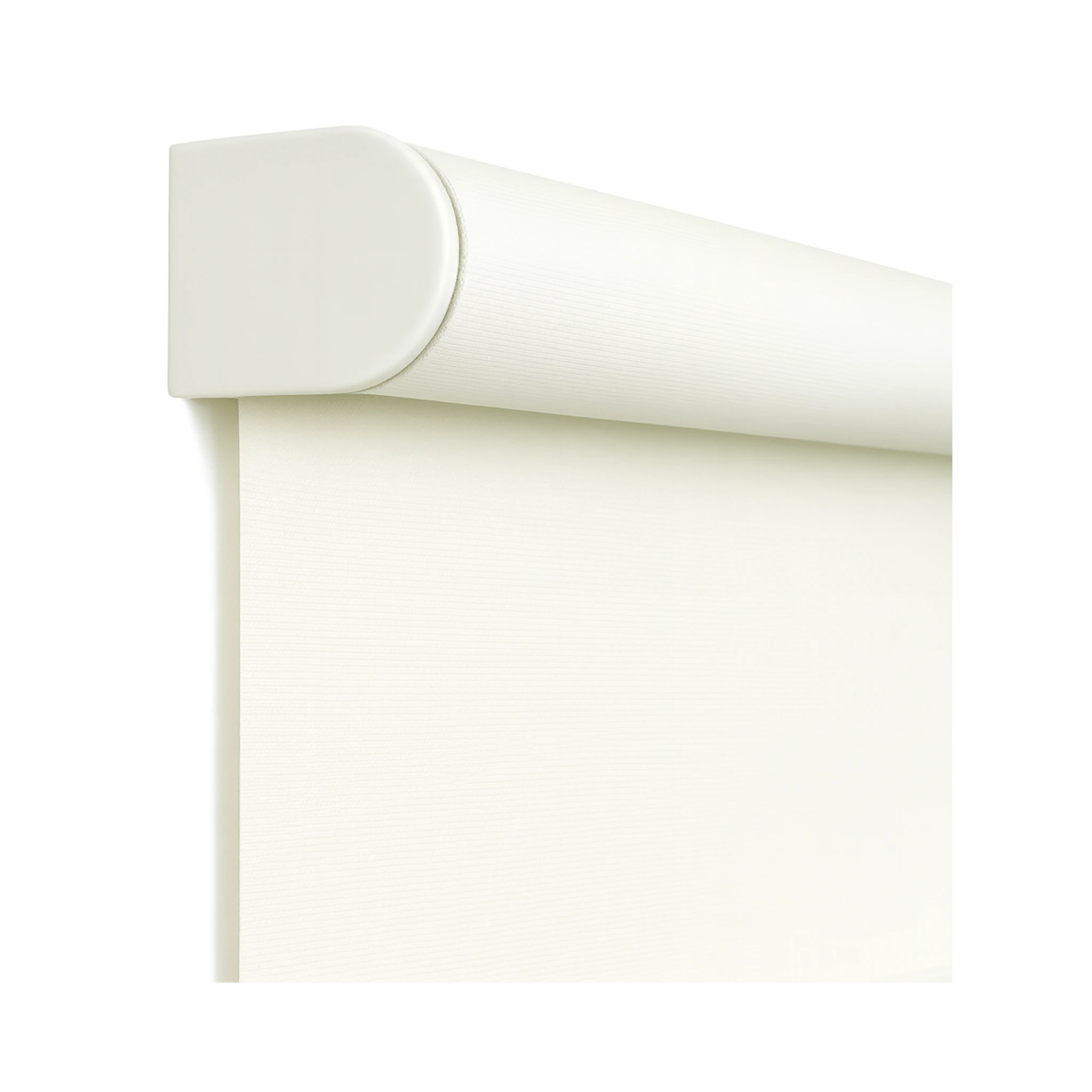

Back Rolled
Outside Mount: We recommend back roll to bring the fabric closer to the wall for better blockout
Back Rolled
Outside Mount Roller Blind Fabric Back Rolled
But remember — it’s completely up to you. Choose the roll direction that suits your space and style.
Mike's Tip!
For bedrooms we recommend 2 separate roller blinds: An inside mounted sunscreen or light filter blind and an outside mounted blockout blind. This will provide you with maximum privacy and room darkening.

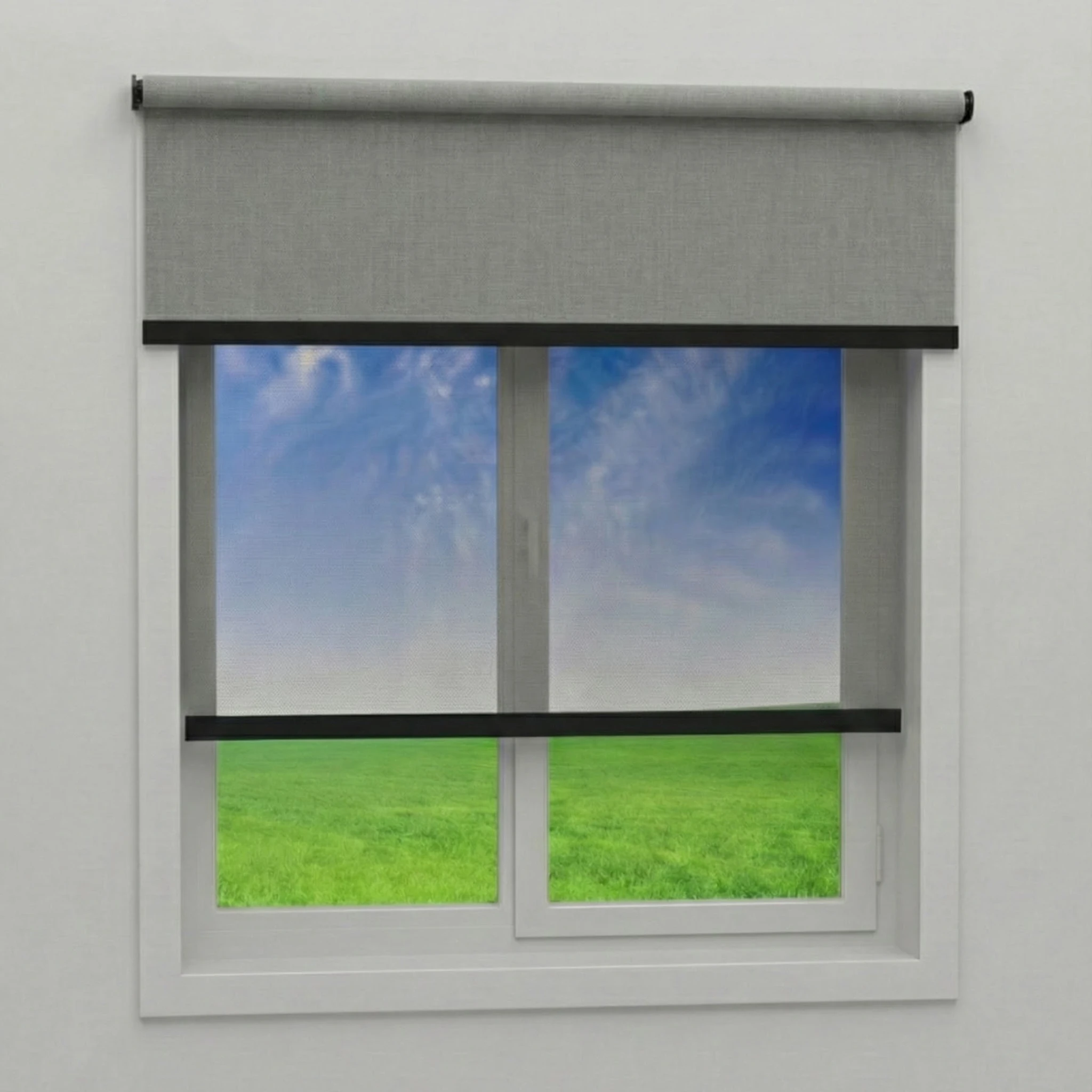

Outside Mount Blockout Roller Blind & Inside Mount Sunscreen Roller Blind
7
Label Each Window
Start at your front door and move clockwise around your home.
Label each window with its room name (e.g., Bedroom 1, Living Room) to stay organised during ordering.
Mike’s Measuring Tips
Always use a steel tape or laser for better accuracy
Measure every window—even if they look the same
Always record in millimetres (mm)
It’s better to be 1mm short than 1mm too long
Clearly label Width and Drop
Don’t make any deductions – we’ll take care of that
Technical Specifications Minimum and Maximum Sizes
Min Width: 250mm (550mm Motorised)
Max Width: 3000mm
Min Drop: 300mm
Max Drop: 3000mm
Note: Width can exceed 3000mm with linked blinds (up to 6000mm)
Provided Chain Lengths Drop (mm) – Chain Supplied (mm)
300 – 800 = 500mm
801 – 1050 = 750mm
1051 – 1550 = 1000mm
1551 – 1900 = 1250mm
1901 – 2200 = 1500mm
2201 – 2600 = 1750mm
2601 – 3000 = 2000mm
Motorised Roller Blinds

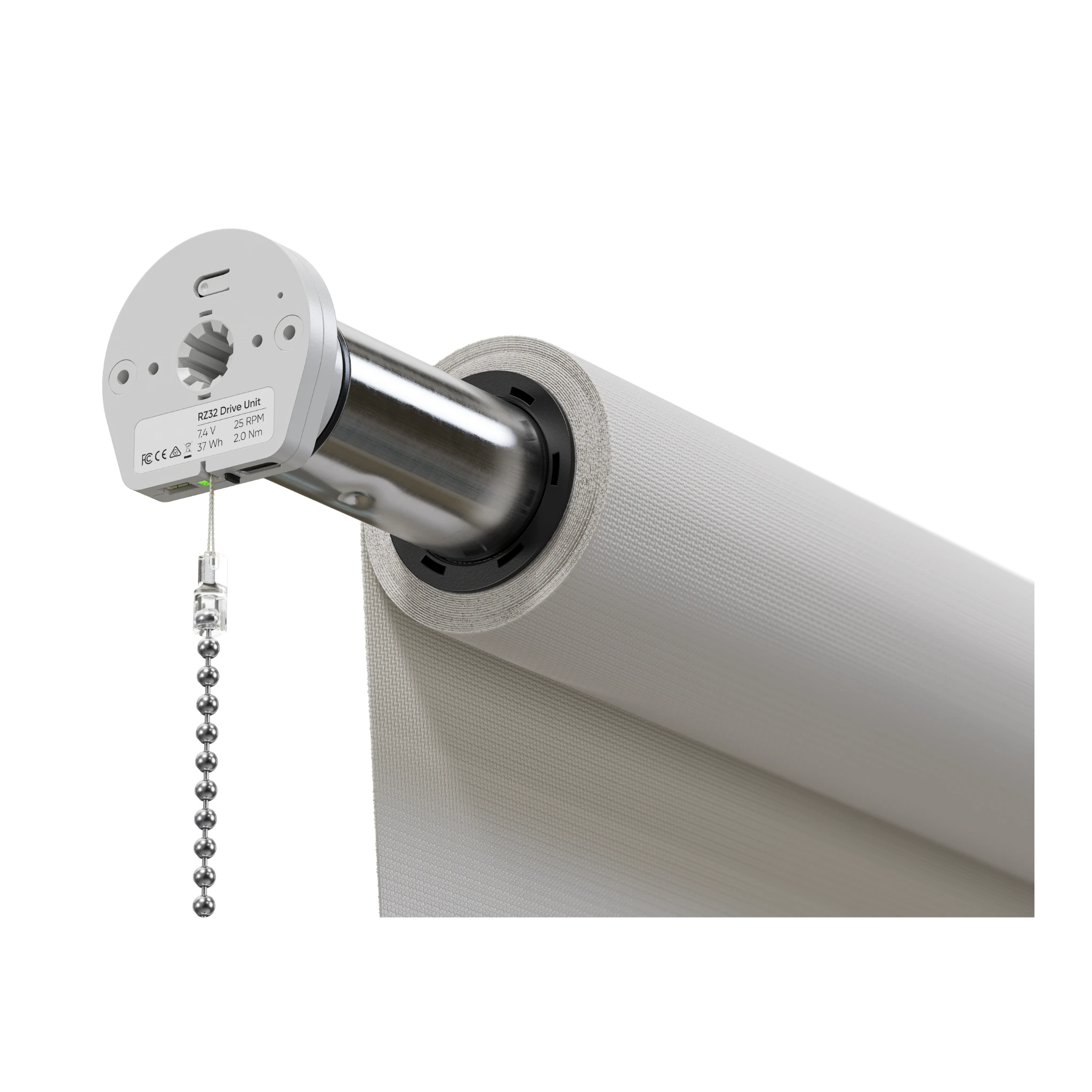

RollerIQ – Smart Home Ready - Matter over thread technology
Works with Apple HomeKit, Google Home, Alexa
Control via app or voice
No remote needed
Fits blind widths: 570mm – 3000mm
Charging: USB-C (sold separately)
Battery life: Up to 12 months
Automate Zero Li-ion
Rechargeable 12V motor inside the tube
Fits widths: 570 – 2000mm (Q1.1), 2001 – 3000mm (Q2.0)
Remote required: Push 15 or Push Pro
Charger sold separately
Battery life: 10–12 months
One remote/charger can control multiple blinds

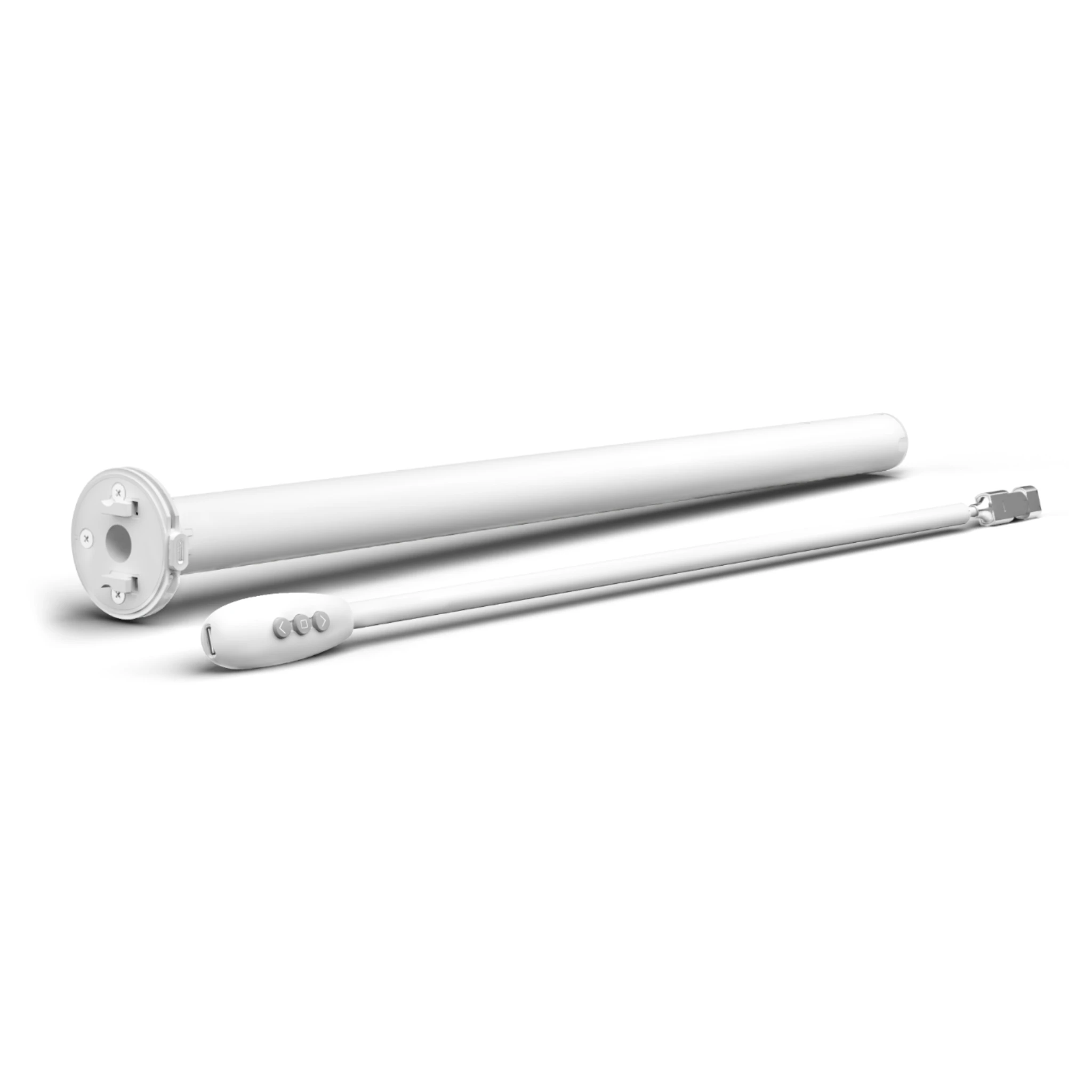

Automate Wand
Simple up/down/stop controls
No remote needed
Fits widths: 550 – 2000mm
Magnetic wand detaches for child safety
Easy Charging: USB-C (sold separately)

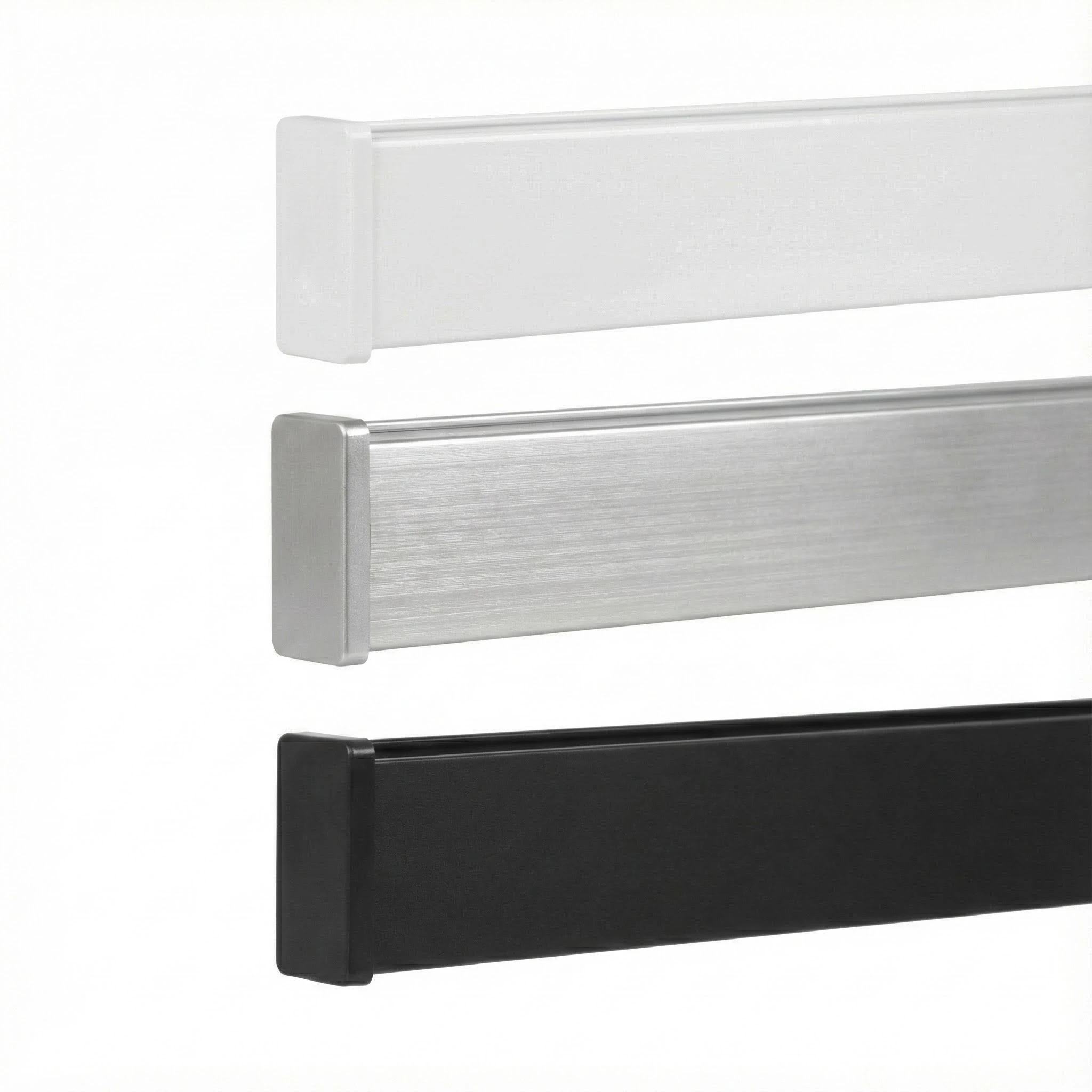

Bottom Rail – Clean, Flat & Customisable
Every roller blind comes with our streamlined flat bottom rail for a clean, modern look that suits any space.
One sleek style – flat profile only
Durable and easy to clean
Choose from three timeless colours: White, Black, or Anodised Silver
Designed to complement your interior and match your pelmet for a cohesive finish

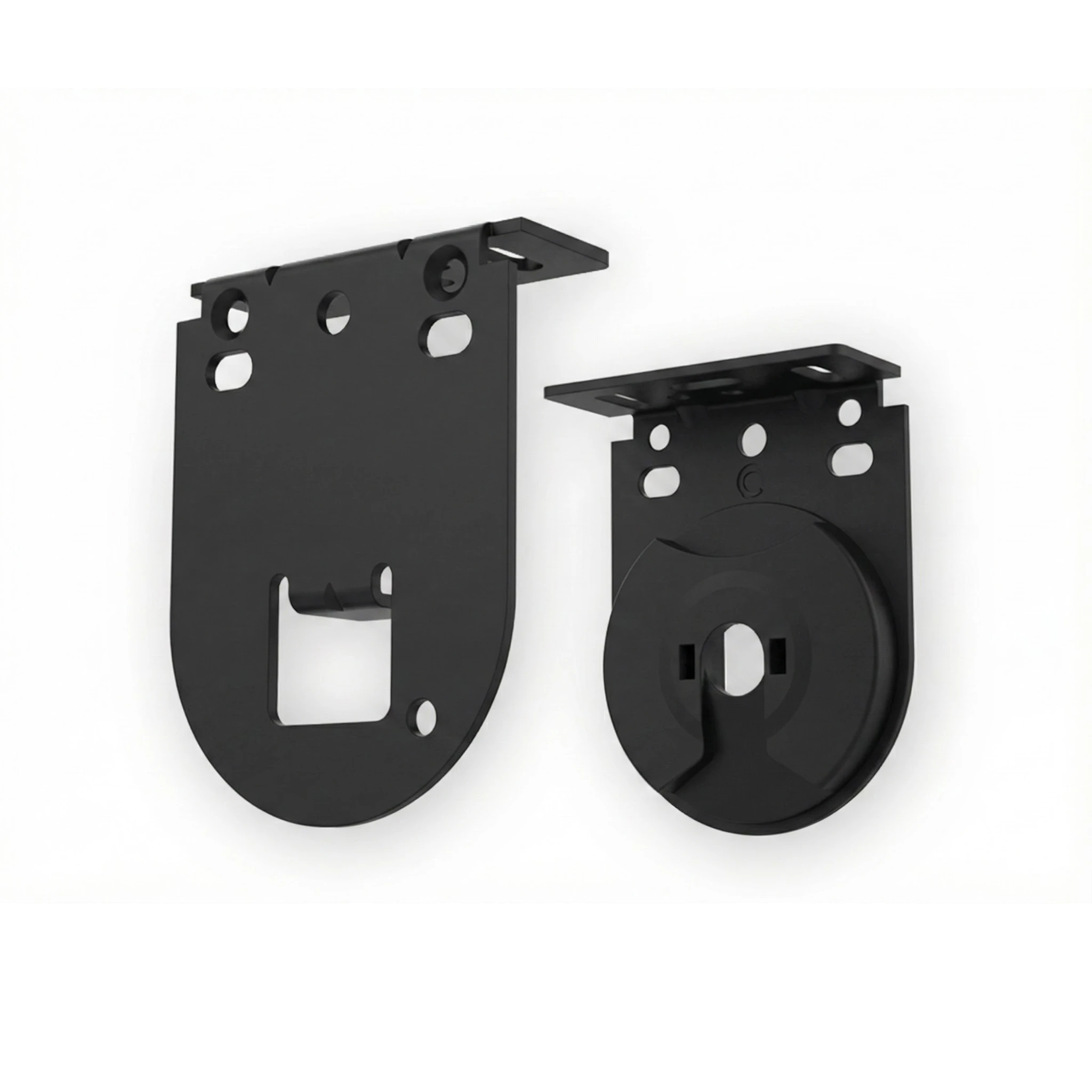

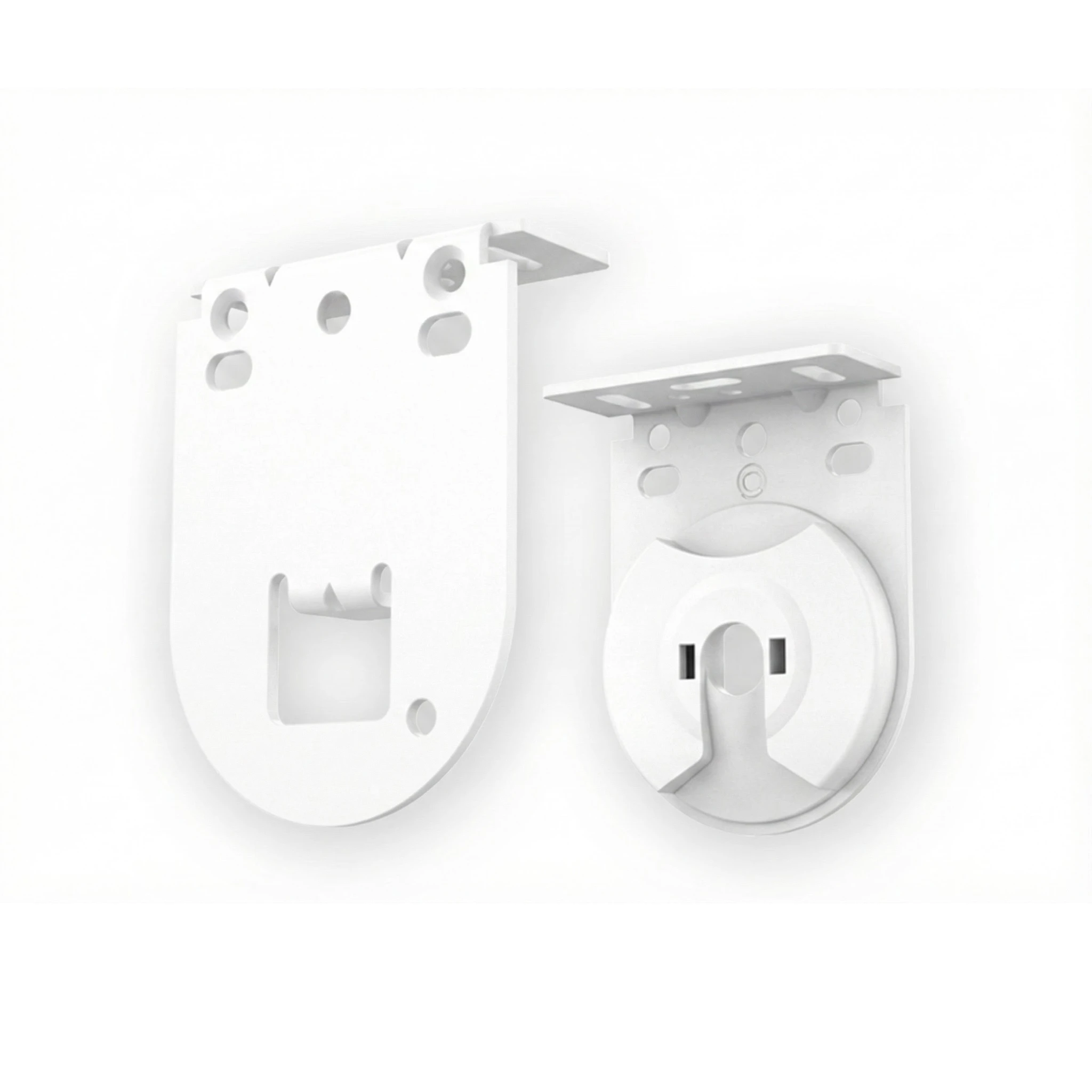

Bracket Colour
White: suits light frames
Black: suits darker frames or contrast look

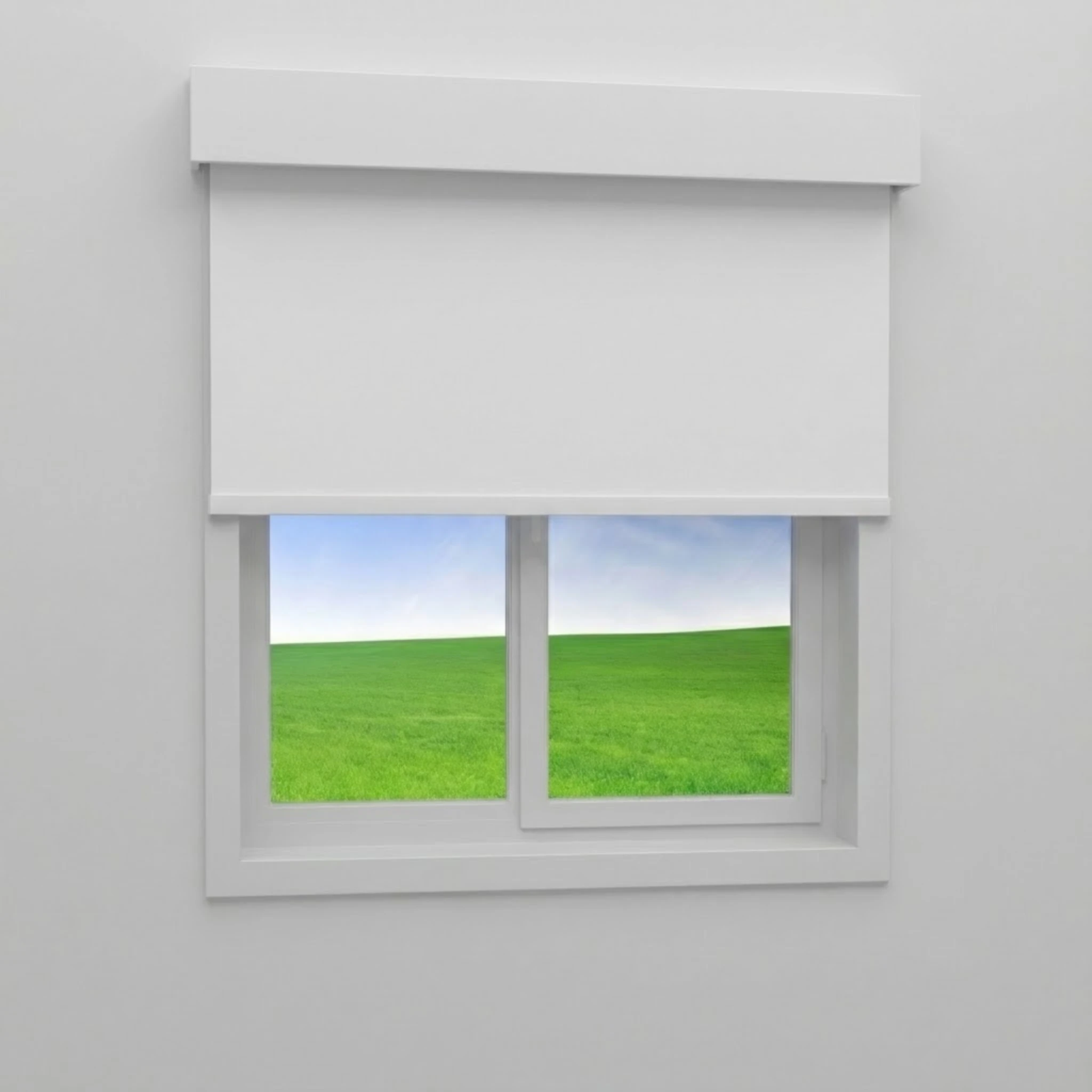

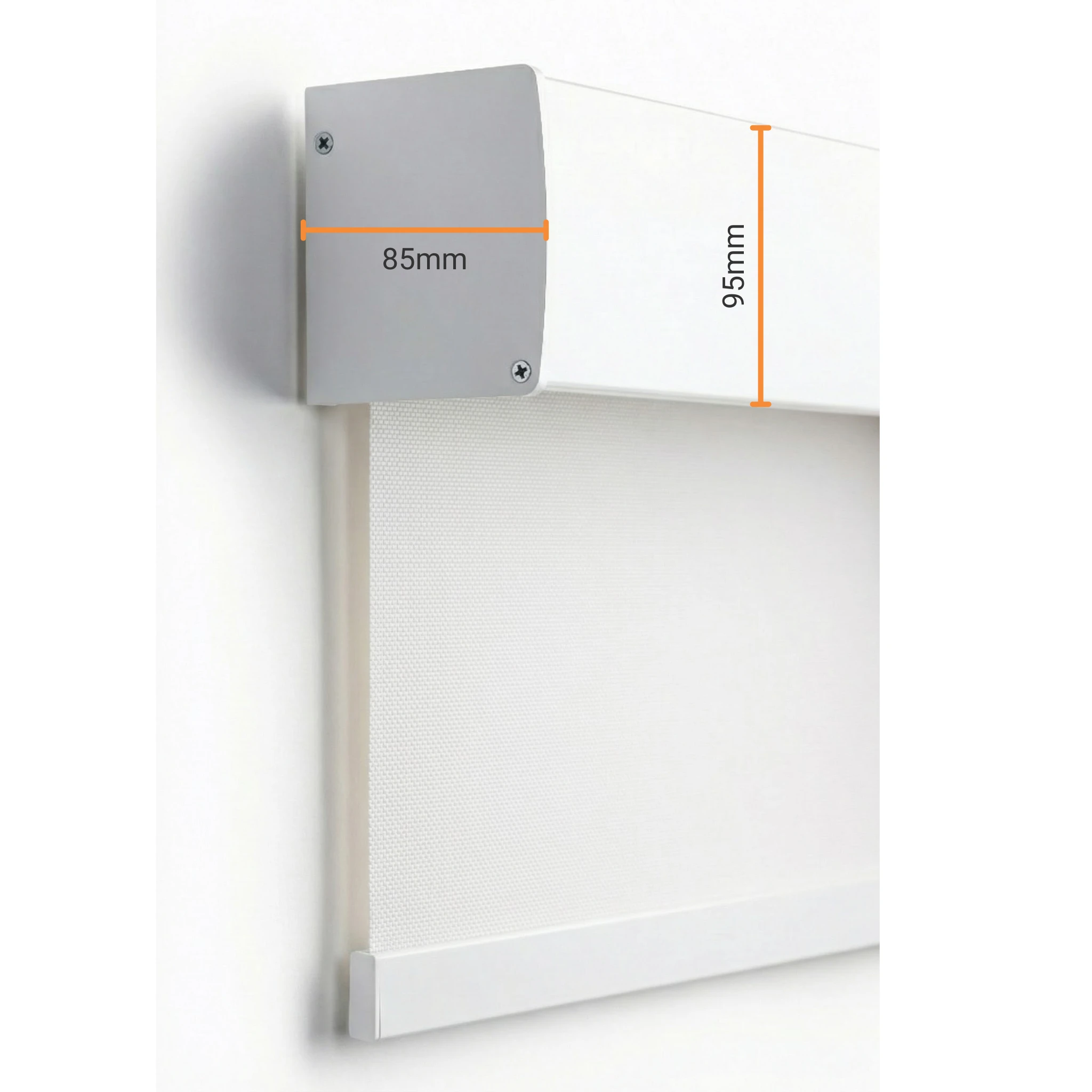

Pelmet 95 – Designer Finish
Covers the tube for a cleaner look
Helps block light and reduce dust
Outside Mount only, back roll only
Fits single or linked blinds (up to 6000mm)
Wider than 3600mm: pelmet supplied in two parts
Colours: White, Black, Anodised
Dimensions: 95mm projection x 95mm height
Pelmet 95 has some different measuring options. Be sure to look at the videos about how to measure and options available for pelmet 95.
Tip: Match your pelmet and bottom rail colour for a seamless finish.
Extra-Wide Windows
Use linked blinds for windows over 3000mm
Link up to 6000mm wide
Independent controls at each end
Linking brackets reduce light gaps
Ideal for stacking doors or wide openings
You’re Ready to Order
Find your preferred blind type, fabric and colour by using the filters
Enter your measurements in mm
Select your control type, roll direction, and extras
Add accessories like motors, remotes or pelmets
Add to cart and checkout
Need Help?
Not sure where to start or which motor to choose? Our team is here to support you with expert guidance, video tutorials, and real advice you can trust.
At iSeekBlinds, we’re here to help you transform your home with DIY roller blinds made right here in Australia. Let’s get measuring.
